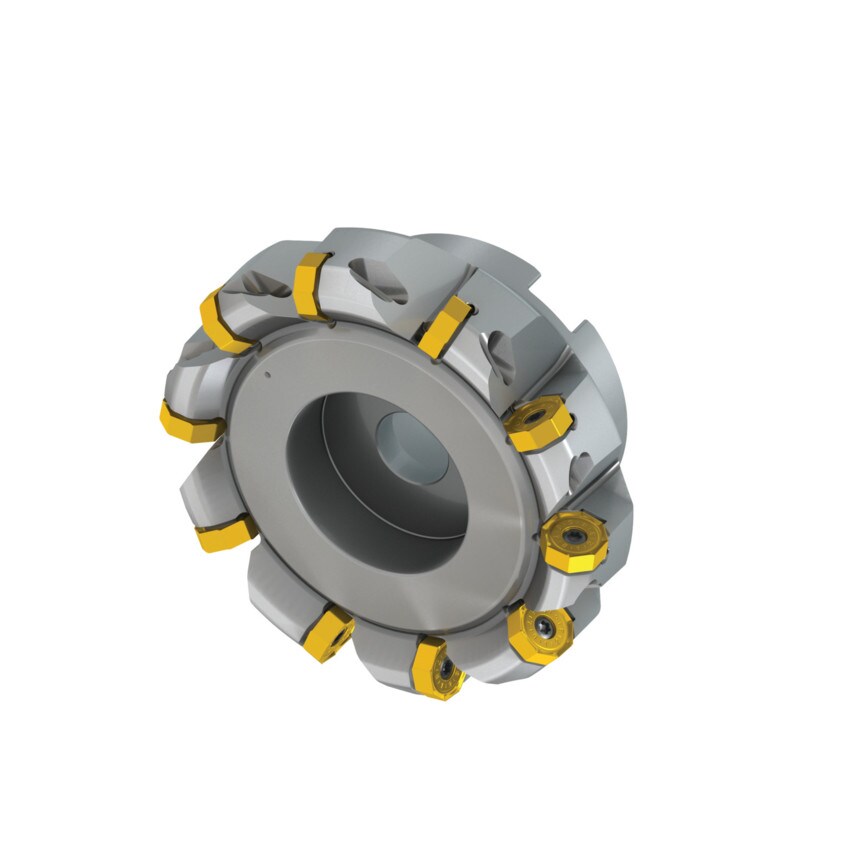

125A10R-S45ON06-C Econ ON06 43 Face Mill

Nickelized steel face mill with double negative geometry utilising 8 double-sided inserts. The cutting diameter ranges from 125mm to 135.8mm with a 43 approach angle and a 40mm connection bore according to DIN 8030-A. 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys

Cutting Edge Angle	43\u00b0
Toolholder Material	Steel
MFR Part No.	8347621
Insert Shape	Octagon
Number of Inserts	10
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Maximum Cutting Diameter	135.8mm
Coolant Delivery	Coolant Through
Height	63mm
Insert Size	605
Toolholder Style	Face Mill
ISO Designation	125A10R-S45ON06-C
