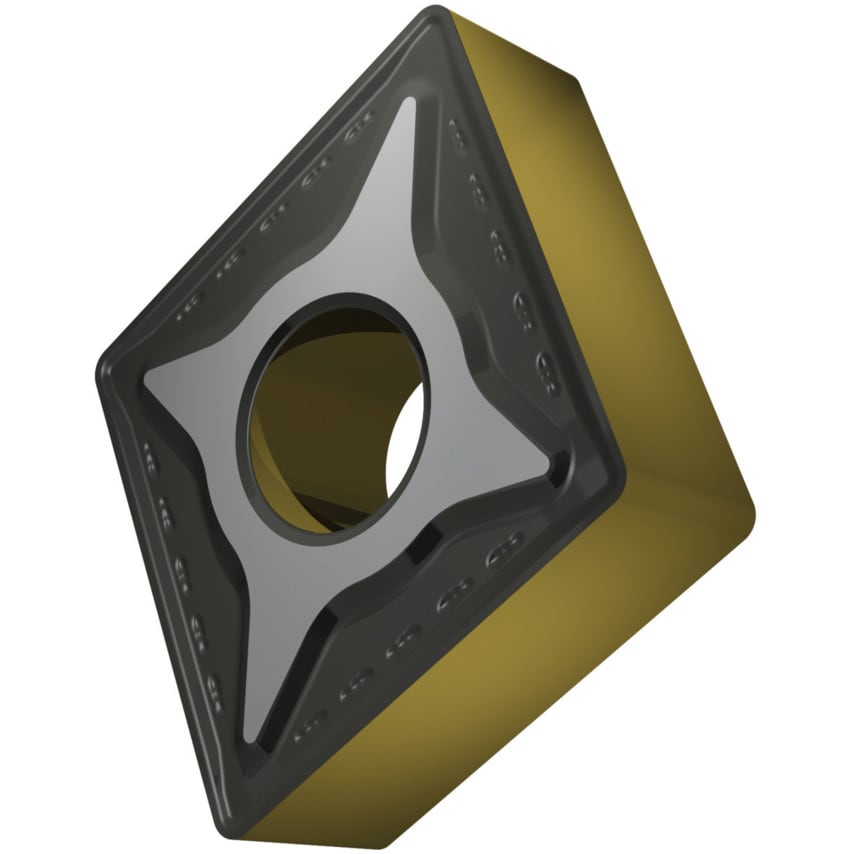

CNMG 160608E-RM T9415 Turning Insert - Negative

These double-sided 80 rhomboid CNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 0.4mm nose radius. Features and Benefits T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Typical Applications Steel Cast Steel

Material Application	Steels
ISO Designation	CNMG160608E-NMR
Inscribed Circle	15.88mm
Corner Radius	0.8mm
Chipbreaker	RM
Thickness	6.35mm
Cutting Edge Length	16.1mm
Finish/Coating	MT-CVD
Material	Carbide
MFR Part No.	8244247
Shape	80\u00b0 Rhombic
Insert Size	16
