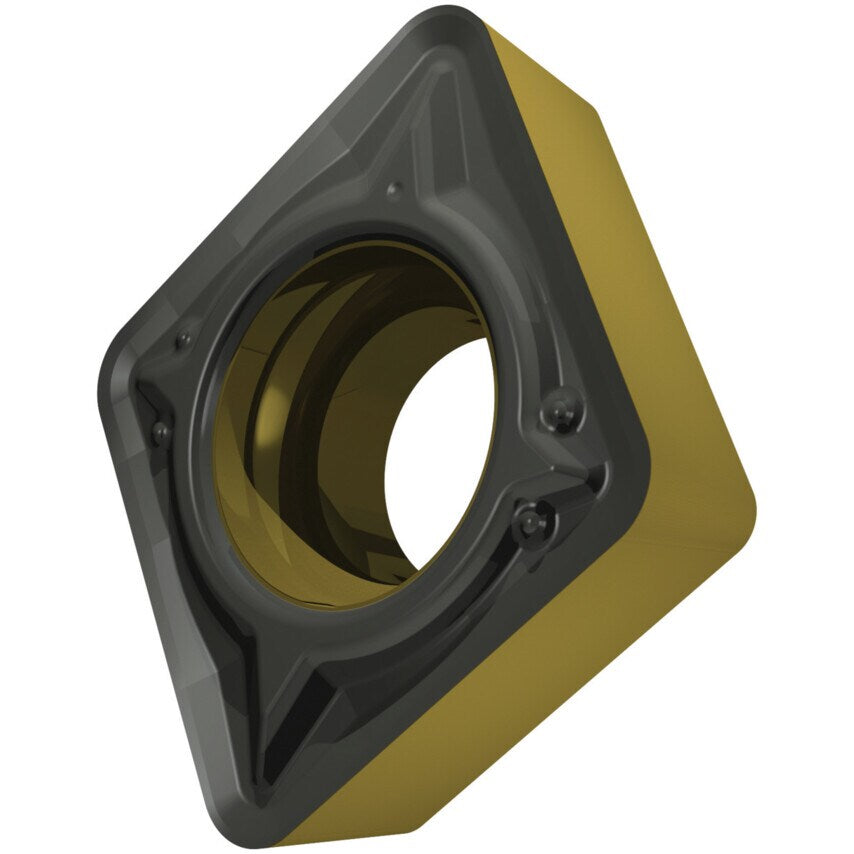

CCMT 060208E-FM T9415 Turning Insert - Positive

These single-sided 80 rhomboid CCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and 0.8mm nose radius. Features and Benefits T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Typical Applications Steel Cast Steel Cast Iron

Insert Size	6
Chipbreaker	FM
MFR Part No.	8244361
ISO Designation	CCMT060208E-FM
Inscribed Circle	6.35mm
Material Application	Cast Iron | Cast Steel | Steels
Corner Radius	0.8mm
Finish/Coating	MT-CVD
Product Type	Turning Inserts
Material	Carbide
Cutting Edge Length	6.4mm
Clearance Angle	7\u00b0
Shape	80\u00b0 Rhombic
Thickness	2.38mm
