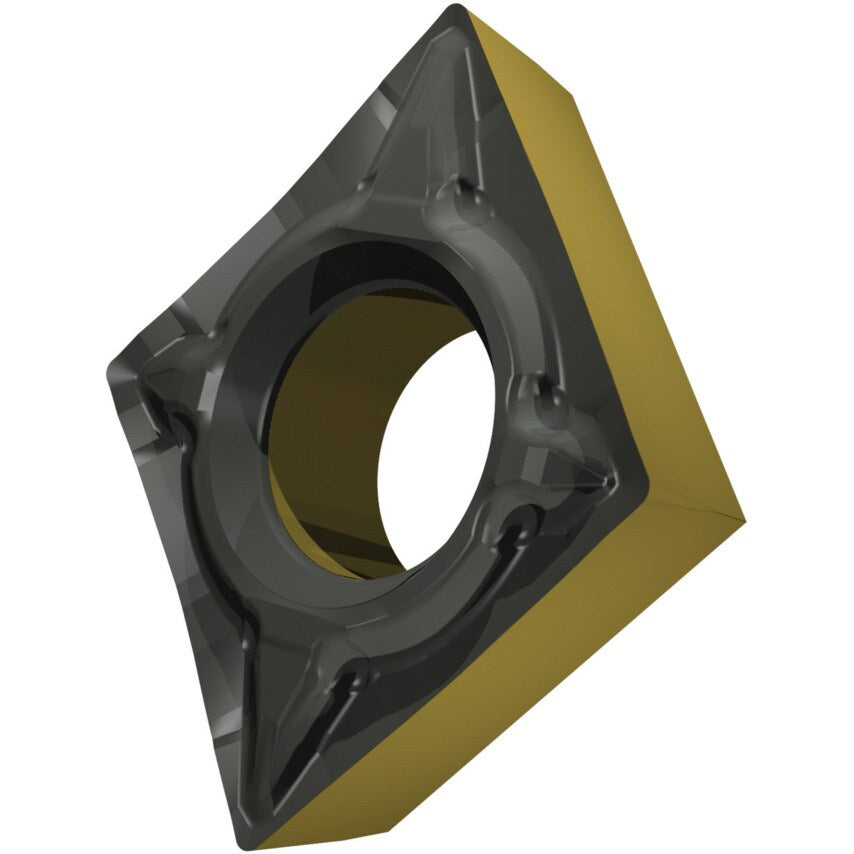

These single-sided 80 rhomboid CCMT turning inserts have a positive insert geometry and were designed for the fine to medium machining of steels. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and 0.2mm nose radius.
Features and Benefits
Available in a range of insert geometries to suit all machining needs
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
Cast Iron
| ISO Cut | P05 -P30 |
| Chipbreaker | UR |
| Shape | Rhombic |
| Thickness | 2.38mm |
| Insert Size | 6.35mm |
| Material | Cobalt-Enriched Carbide |
| MFR Part No. | 8345916 |
| ISO Category Grade | M |
| Cutting Edge Length | 6.4mm |
| Finish/Coating | MT-CVD |
| Inscribed Circle | 6.35mm |
| Product Type | Turning Inserts |
| Insert Style | CCMT |
| Clearance Angle | 7\u00b0 |
| ISO Designation | CCMT060202E-UR |
| Corner Radius | 0.2mm |
| Manufacturer Grade | T9415 |
| Material Application | Steels |
