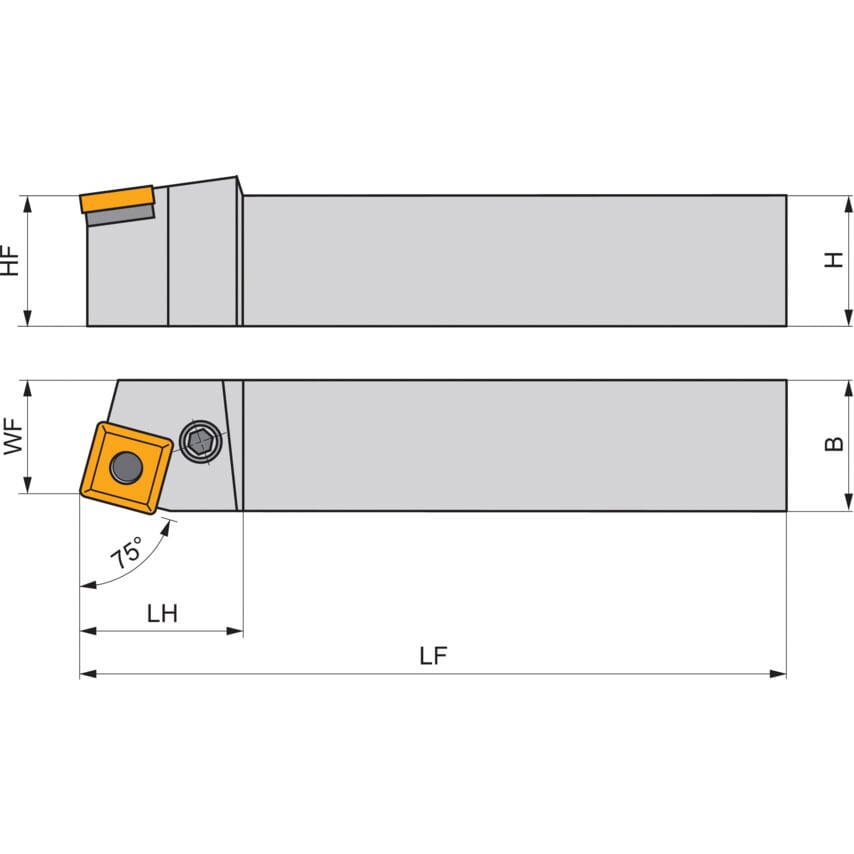

These turning toolholders were designed to hold a square negative insert with an inscribed circle diameter of 25.4mm, and a thickness of 12mm. 40mm tool height x 40mm width x 250mm long for taper turning and longitudinal turning without shoulder.
Features and Benefits
Nickelized for higher oxidation and wear resistance
Internal coolant channels improve insert tool life
Improved chip evacuation provides high surface quality and reliability
| Insert Shape | Square |
| Toolholder Style | PSBN |
| Overall Length (l1) | 250mm |
| Shank Height (h) | 40mm |
| ISO Designation | PSBNR4040S2512 |
| Insert Style | SNMX |
| Set Type | Individual Toolholder |
| Insert Holding Type | Lever Lock |
| MFR Part No. | 8291185 |
| Shank Width (b) | 40mm |
