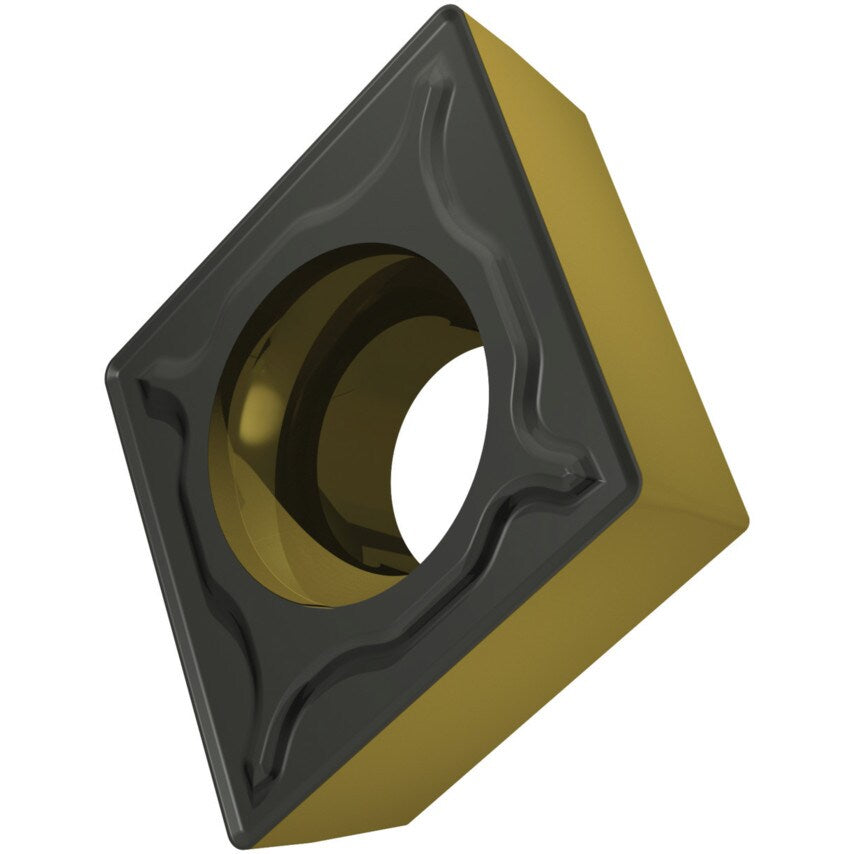

These single-sided 80 rhomboid CCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 9.525mm, 3.97mm thickness, and 0.2mm nose radius.
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
Cast Iron
| Chipbreaker | FM2 |
| Product Type | Turning Inserts |
| Material Application | Cast Iron | Cast Steel | Steels |
| Thickness | 3.97mm |
| Finish/Coating | MT-CVD |
| MFR Part No. | 8345888 |
| Shape | 80\u00b0 Rhombic |
| Cutting Edge Length | 9.7mm |
| Clearance Angle | 7\u00b0 |
| ISO Designation | CCMT09T304E-FM2 |
| Corner Radius | 0.4mm |
| Insert Size | 9 |
| Inscribed Circle | 9.53mm |
| ISO Category Grade | M |
| Material | Carbide |
