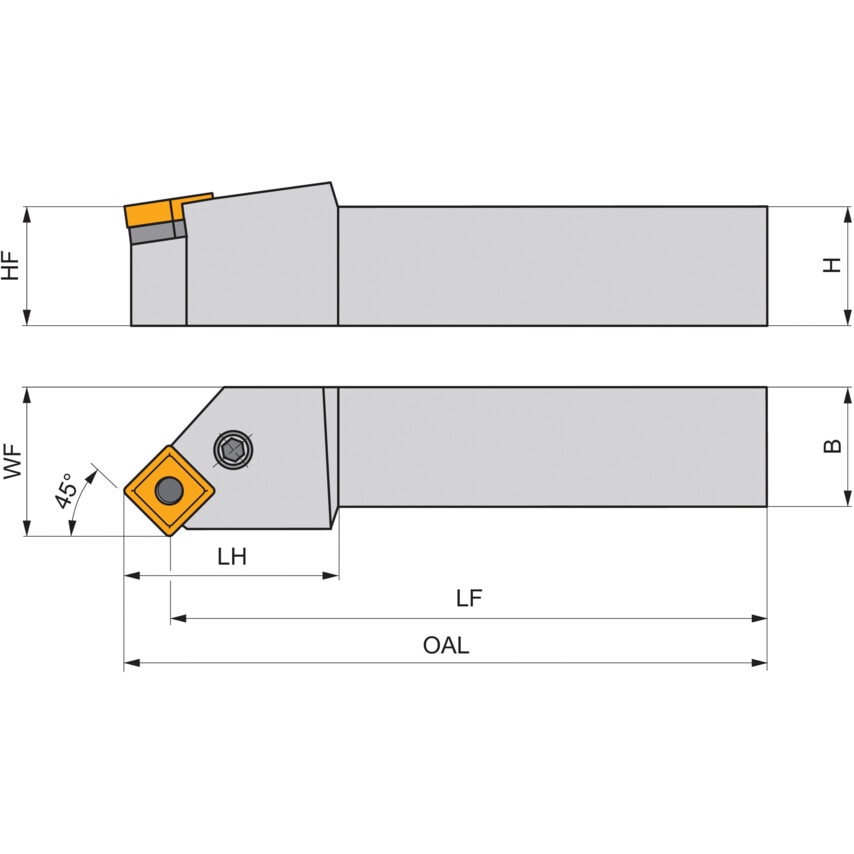

These turning toolholders were designed to hold a square negative insert with an inscribed circle diameter of 19.05mm, and a thickness of 6.35mm. 40mm tool height x 40mm width x 250mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder.
Features and Benefits
Nickelized for higher oxidation and wear resistance
Internal coolant channels improve insert tool life
Improved chip evacuation provides high surface quality and reliability
| Insert Style | SNMG | SNMM |
| ISO Designation | PSSNR4040S19 |
| Overall Length (l1) | 250mm |
| Set Type | Individual Toolholder |
| Insert Holding Type | Lever Lock |
| Shank Width (b) | 40mm |
| Toolholder Style | PSSN |
| Insert Shape | Square |
| Shank Height (h) | 40mm |
| MFR Part No. | 8281405 |
