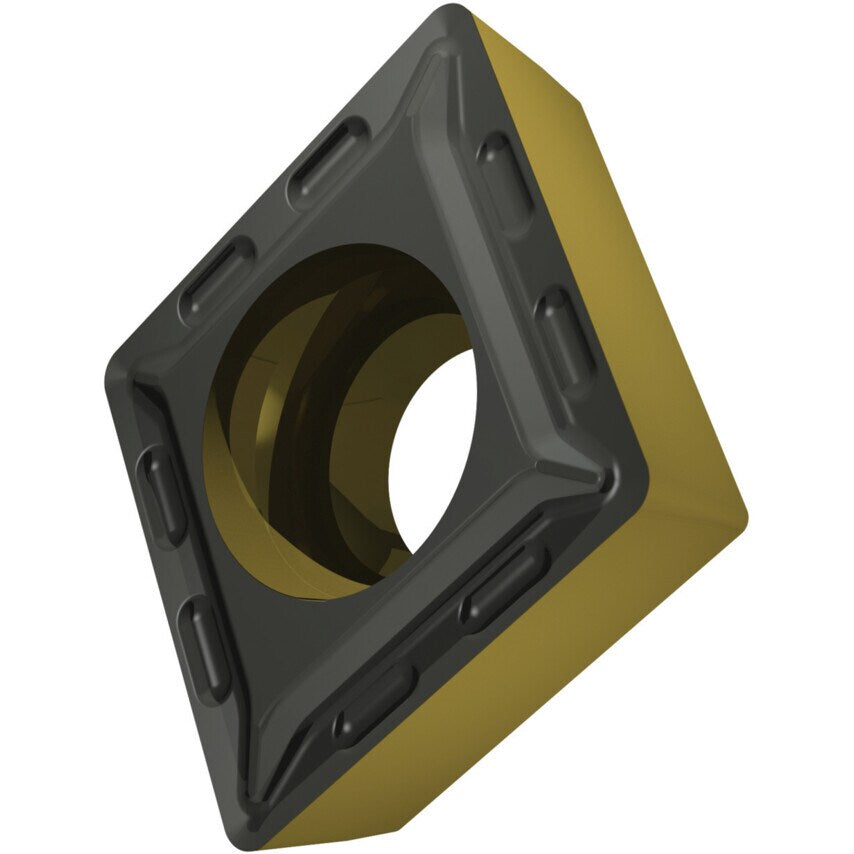

CCMT 060204E-FF2 T9415 Turning Insert - Positive

These single-sided 80 rhomboid CCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and 0.4mm nose radius. Features and Benefits The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Typical Applications Steel Cast Steel Cast Iron

Inscribed Circle	6.35mm
Cutting Edge Length	6.4mm
Finish/Coating	MT-CVD
Corner Radius	0.4mm
Shape	80\u00b0 Rhombic
Product Type	Turning Inserts
Thickness	2.38mm
Insert Size	6
Material Application	Cast Iron | Cast Steel | Steels
Chipbreaker	FF2
ISO Designation	CCMT060204E-FF2
MFR Part No.	8345917
Material	Carbide
Clearance Angle	7\u00b0
