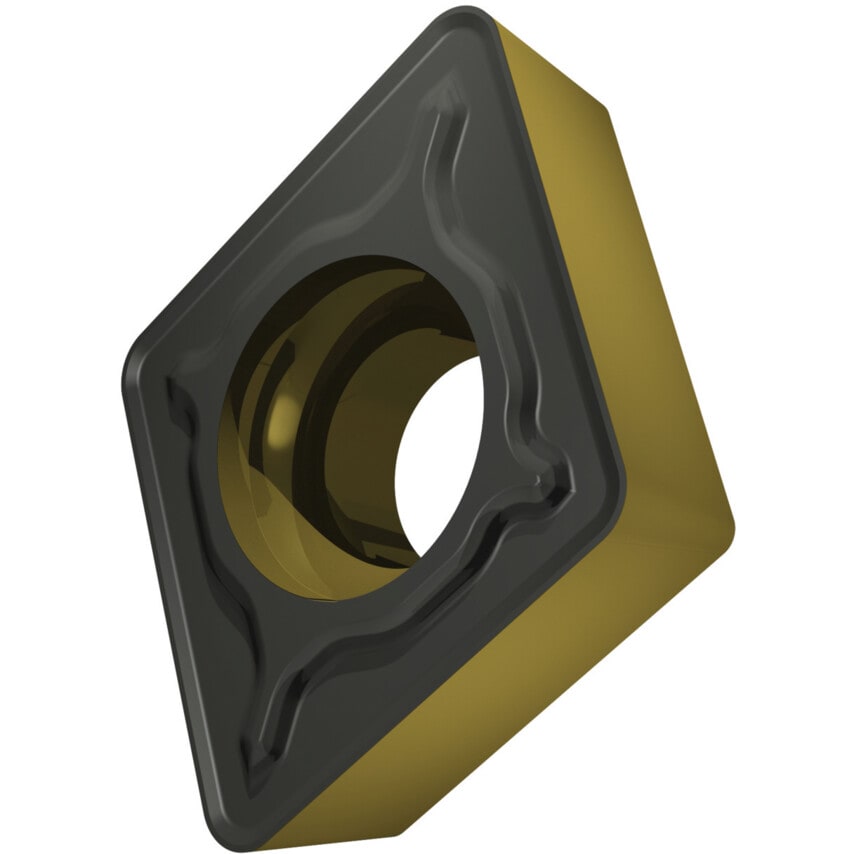

This single-sided 55 rhomboid ECMT turning insert has a positive insert geometry and was designed for the fine to medium machining of steels. The inscribed circle has a diameter of 7.94mm, 3.18mm thickness, and a 0.8mm nose radius.
Features and Benefits
The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel

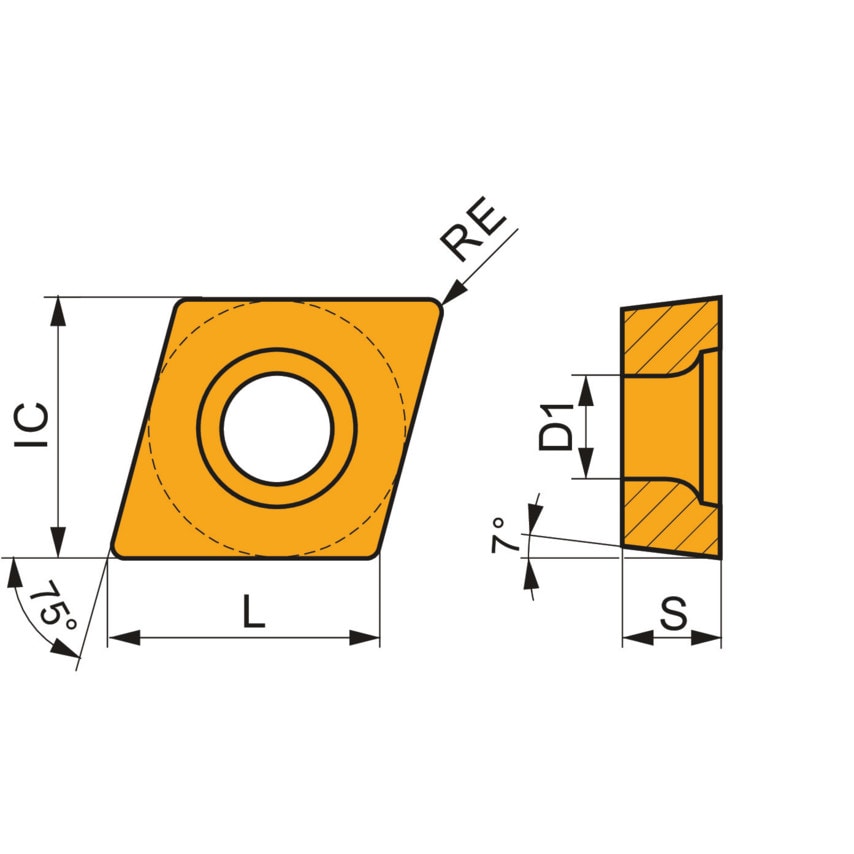

| Chipbreaker | FM2 |
| Insert Size | 8 |
| Thickness | 3.18mm |
| Shape | 75\u00b0 Rhombic |
| Cutting Edge Length | 8.2mm |
| Finish/Coating | MT-CVD |
| Clearance Angle | 7\u00b0 |
| Material | Carbide |
| MFR Part No. | 8345946 |
| Inscribed Circle | 7.94mm |
| Corner Radius | 0.8mm |
| ISO Designation | ECMT080308E-FM2 |
