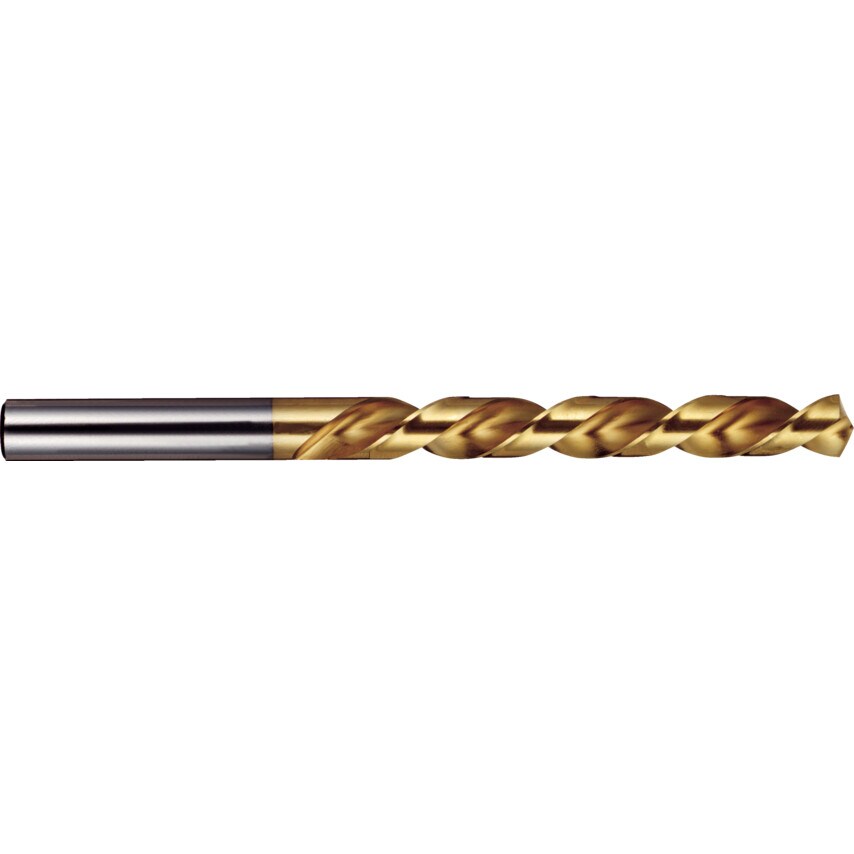

Heavy-duty drill made for 8 % cobalt material with excellent heat
resistance. To drill steels with tensile strength up to 1.400 N/ mm, very
hard bronze, stainless steels as well as heat- and acid resistant steels. TiN coating provides longer tool life or increased cutting speeds.
Features and Benefits
High speed steel and 8% cobalt material for excellent tool hardness
Increased heat and wear resistance for drilling hard substrates
TiN coating for prolonged tool lifespan
Typical Applications
Drilling
Steels with tensile strength up to 1.400 N/ mm
Hard bronze
Stainless steels
Heat- and acid resistant steels
| Standards Met | DIN 388 |
| Cutting Direction | Right Hand |
| Drill Diameter | 3.2mm |
| Drill Diameter Tolerance | F11 |
| Number of Flutes | 2 |
| Overall Length | 65mm |
| Flute Length | 36mm |
| Finish/Coating | TiN |
| Web Thickness | Form C |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| Point Angle | 135\u00b0 |
| Drill Diameter Metric | 3.2mm |
| Series | 2063 |
| Shank Diameter Tolerance | H8 |
| Product Type | Jobber Drills |
| Material | Cobalt High Speed Steel |
| Flute Type | Spiral |
| Helix Type | Normal Helix |
