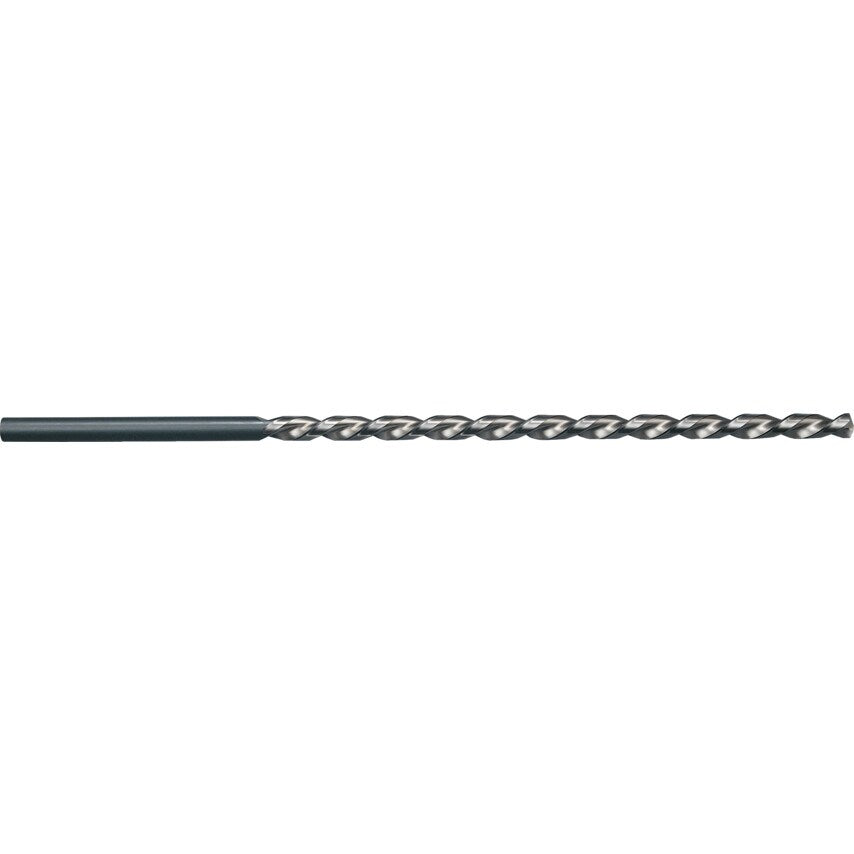

Series 619 HSS-CoHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
High heat resistant drill with wide chip space for very deep holes in difficult conditions, such as when swarf congestion hinders the flow of coolant to the drill point or when tool overheating arises from other causes. For use in steels and cast steels of high tensile strength (not suitable for lubrication holes in crankshafts). Manufactured to DIN 1869.
| Material | Cobalt High Speed Steel |
| Overall Length | 320mm |
| Point Type | Thinned Point |
| Series | 619 |
| Standards Met | DIN 1869 |
| Point Angle | 130\u00b0 |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Helix Type | High Helix |
| Flute Construction | Ground flutes |
| Drill Diameter Tolerance | H8 |
| Flute Length | 220mm |
| MFR Part No. | 00619 009.000 |
| Flute Type | Parabolic |
| Coolant Delivery | External |
| Web Thickness | Form A |
| Number of Pieces | 1 |
