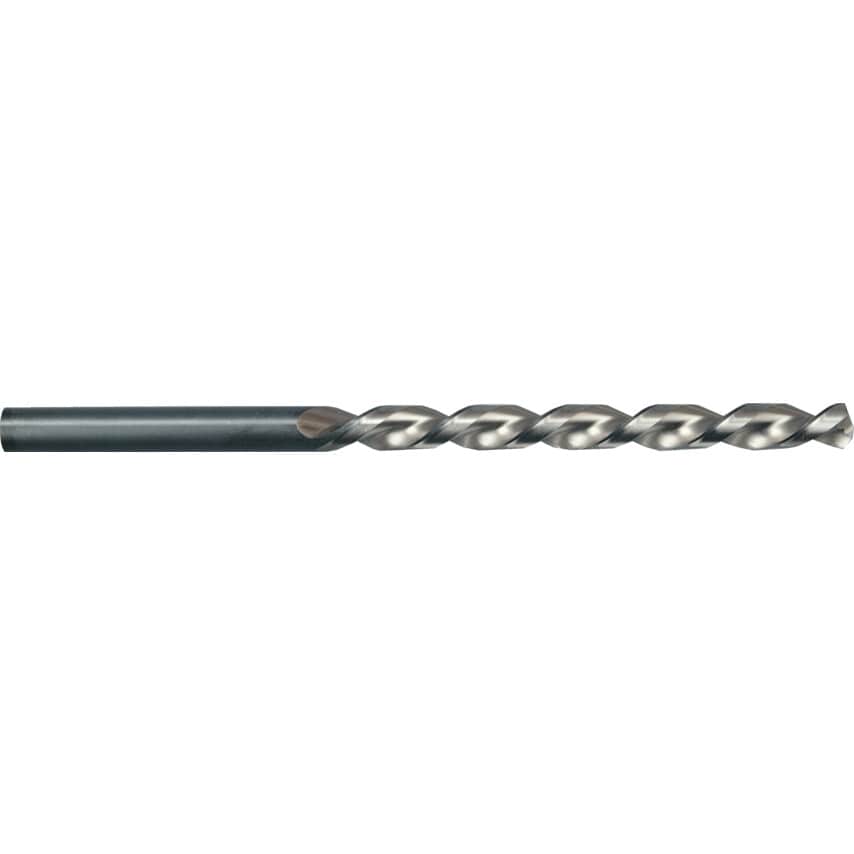

Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill
Metric
A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN 340.
| Flute Type | Parabolic |
| Coolant Delivery | External |
| Series | 535 |
| Material | HSS |
| Overall Length | 126mm |
| Flute Length | 82mm |
| Point Angle | 130\u00b0 |
| Point Type | Thinned Point |
| Standards Met | DIN 340 |
| Finish/Coating | Bright |
| Shank Diameter Tolerance | H8 |
| Helix Type | High Helix |
| MFR Part No. | 00535 004.700 |
| System of Measurement | Metric |
| Number of Pieces | 1 |
| Flute Construction | Ground flutes |
| Web Thickness | Form A |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance | H8 |
