TigerTec Silver
Negative Shape
FP5: Curved cutting edge for low cutting forces. Finishing steel materials, can also be used in semi-finishing as an alternative to MP3.
MK5: Machining high-strength steel materials, Universal geometry, cast iron materials
MP3: Medium machining of long-chipping steel materials, low cutting forces due to curved cutting edge, also machining forged parts with low material removal.
NF4: Finishing stainless materials and alloys with difficult cutting properties. Finishing long-chipping steel materials. Curved cutting edge for cutting pressure reduction.
NM4: Universal geometry, steel & stainless steel materials and high temperature alloys. Machining long-chipping steels.
RP5: Roughing steel materials a stable, positive cutting edge with open groove for a low cutting temperature.
| Cutting Direction | Neutral |
| Manufacturer Grade | WSM20 |

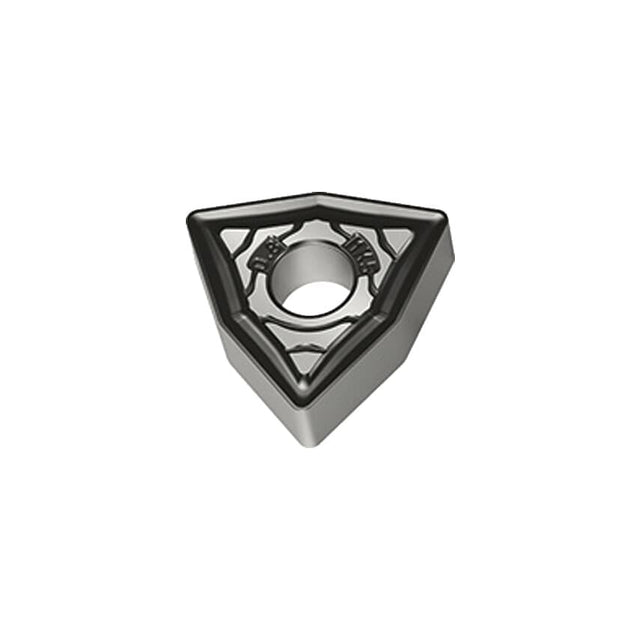

| Insert Style | WNMG |
| ISO Designation | WNMG 080408-NM4 |
| Corner Radius | 0.8 |
| Cutting Edge Length | 8.7mm |
| Inscribed Circle | 12.7mm |
| Thickness | 4.76mm |
| Material Application | Alloy |
| Insert Size | 804 |
| Shape | Trigon |
| Chipbreaker | NM4 |
