£10.23

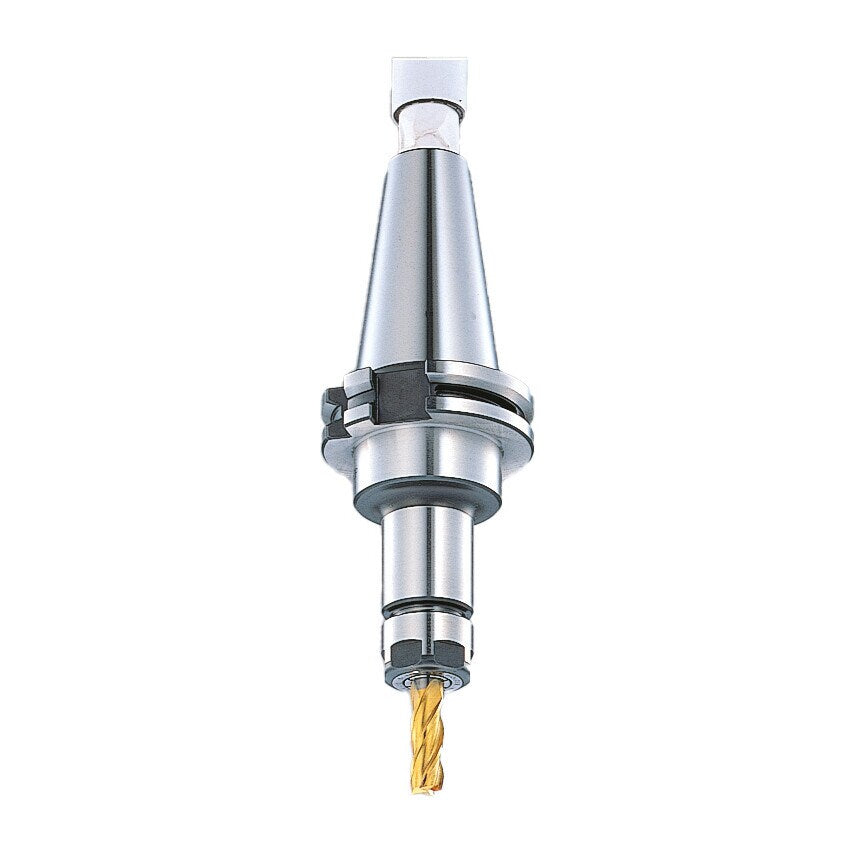

These Slim Chucks are a high-precision collet chuck solution engineered to deliver superior accuracy, rigidity, and gripping strength. Designed for a wide range of machining applications, the Slim Chuck features a robust three-part construction comprising the main body/shank, a TiN-coated bearing nut, and a precision-ground collet -- all centred around an 8 taper system. This geometry offers significantly enhanced performance when compared to standard ER systems, which typically use a 16 taper and provide less than half the gripping capability and accuracy.
The slim chuck is available in a wide range of shank sizes, lengths, and taper standards making it a versatile solution for nearly all machine tool configurations. Additionally, it can be used in conjunction with multi-lock milling chucks via a straight shank variant, further expanding its application range for high-rigidity and modular setups.
Features and Benefits
8 collet taper system offers more than twice the gripping force and accuracy compared to conventional 16 ER collet systems, ensuring stable and precise machining
Run-out guarantee ensures exceptional concentricity for improved part finish, reduced tool wear, and increased component accuracy
Unique TiN-coated bearing nut minimises tightening friction, enhances torque consistency, and extends the life of both the nut and the collet
Square shoulder pushing design provides additional axial support for increased tool rigidity and machining reliability, particularly in heavy-duty applications
Three-part construction simplifies tool changes and ensures robust, consistent clamping across a wide variety of operations
Jet coolant compatibility enables direct coolant delivery to the cutting edge for better heat dissipation, longer tool life, and improved chip evacuation
Molybdenum-coated threads ensure smooth assembly and disassembly, with excellent resistance to wear and corrosion, even in intensive use environments.
Wide taper compatibility supports integration with most machine spindles, offering flexibility and standardisation across your workshop
| Overall Length | 90mm |
| MFR Part No. | IT40-SK16-90 |
| Diameter | 40mm |
| Chuck Type | SK16 |
| Collet Capacity | 2.75-16 |
